PLN-60-27

MEAN WELL
PLN-60-27
Quantity Unit price
From 1 €37.16 *
From 5 €35.50 *
From 10 €33.84 *
From 20 €32.90 *

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13783
Datenblatt zu PLN-60-27
Description Properties
Description
Technische Eigenschaften des MEAN WELL PLN-60-27 Leistung: 62,1W Universeller... more
Close menu

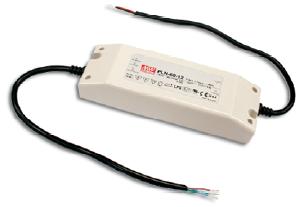

Product information "PLN-60-27"

Technische Eigenschaften des MEAN WELL PLN-60-27

  • Leistung: 62,1W
  • Universeller AC Eingang/ Breiter Eingangsbereich von 90 bis 264VAC
  • Schutz vor Kurzschluss/ Überstrom/ Überspannung/ Überhitzung
  • Kühlung durch freie Luftkonvektion
  • Eingebaute Konstantstrombegrenzungsschaltung mit einstellbarem OCP Level
  • Vollständig isoliertes Plastikgehäuse
  • Integrierte, aktive PFC-Funktion
  • IP64 Design für Indoor und Outdoor Installationen
  • Schmale und kompakte Größe
  • Class II Schaltnetzteil/ kein FG
  • 100% Volllast burn-in Test
  • Hohe Zuverlässigkeit, niedrige Kosten: bestes Preis-Leistungsverhältnis
  • Geeignet für feuchte/ nasse Umgebung
  • Geeignet für LED Beleuchtungen und LED Displays
  • 2 Jahre Garantie
Related links to "PLN-60-27"
Available downloads:
Properties
Hier können Sie alle Eigenschaften sehen more
Eigenschaften für "PLN-60-27"
Voltage: 27 VDC
Power: 60 Watt
Protection type: IP64
Protection class: Class 2
Efficiency: 88 %
Rated current: 2,3 A
Warranty: Two years
Safety approvals: CE, CB, CCC, MM, SELV, TÜV, UL
Height: 35 mm
Width: 61,5 mm
Length: 181 mm
Weight: 0,5kg
